Designed for operation from high vacuum (133 μPa or 10-6 torr) to 3.44MPa (25.8 ktorr).
Operates at temperatures up to 910°C (under vacuum).
Three inlet/outlet ports provided for evacuating the cell and introducing gases.
Made of chemically resistant 316 stainless steel.
8-mm open aperture.
Removable 13x2mm SiO2 window.
Optional Silcotek/Restek inert coatings available for greater inertness and corrosion resistance.
Optional cooling cartridge available for moderate cooling or heating with a chiller or recirculator.
Adapters for electrochemistry offered in two, three or four electrode-ready configurations.
Optional mounting available.

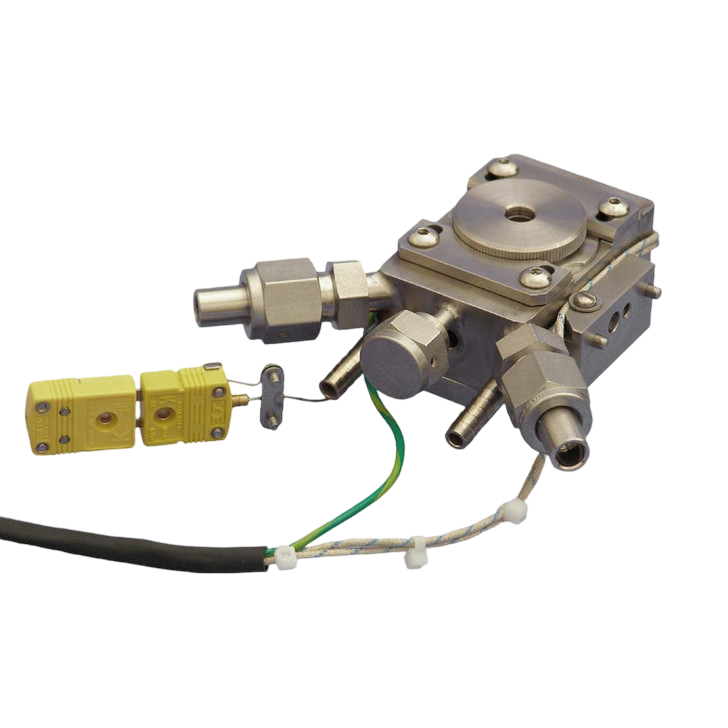

Reaction Chamber.
Low-voltage heating cartridge.
K-type thermocouple.
FKM fluoroelastomer (equivalent to Viton) O-rings.
Sample packing tool and spill tray.
Window assembly with Viton o-rings and 13x2mm SiO2 window.
