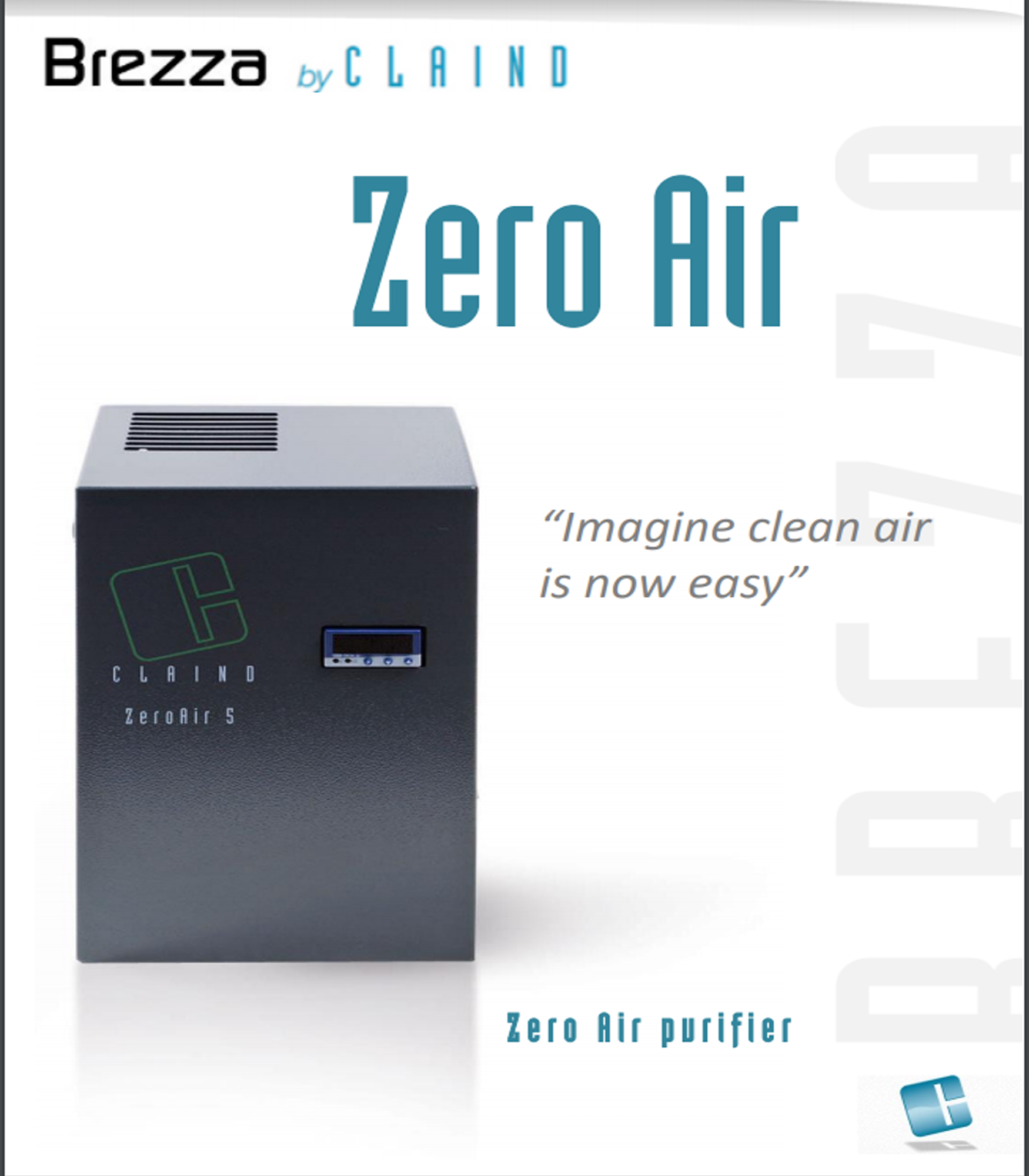

ZeroAir

Brand

The excellent solution for FID and FPD with guaranteed an absolutely stable disturbance-free baseline
It is the expression of simplicity and requires only to be switched on in order to supply Zero Air HCT free
Economic, connected at 4 FID the payback is less than 1 year
Dual Bench-top/Wall-mounting version
High efficiency Palladium-Platinum HC system for removal of HCTs < 0,1 ppm at catalizing low temperature for an absolutely stable and disturbance–free baseline
ZeroAir series is able to serve from 14 up to 55 FID
Easy integration with a Brezza series dedicated air compressor (AirComp)
Catalyzer Temperature monitor included
Possibility of parallel connections

Specifications

Downloads

FLOW RATE	ZeroAir 5: 5 Nl/min ± 10% a 2000 m asl ZeroAir 20: 20 Nl/min ± 10% a 2000 m al
TECHNOLOGIES EMPLOY	Platinum-Palladium catalytic reactor
EFFICIENCY	Total hydrocarbons residual with catalyzer < 0,1ppm HC removal efficiency: - methane > 99% - aromatics (btx) and ydrocarbons starting from c3hn > 99,5% - carbon monoxide (co), hydrogen (h2 ) ethylene and propylene > 99,9%
OUTPUT PRESSURE	0 - 10 bar/0 - 145 psi ± 3%
AIR INPUT CHARACTERISTICS	Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ -15° C dew point ATP
ELECTRICAL SUPPLY	ZeroAir 5 115 Vac ±10% 60 Hz 180W 230 Vac ±10% 50 Hz 180W ZeroAir 20 115 Vac ±10% 60 Hz 450 W 230 Vac ±10% 50 Hz 450 W
INDEX OF PROTECTION	IP20
OPERATING TEMPERATURE	5°C - 35°C (41°F - 95°F)
ENVIRONMENTAL HUMIDITY	max 80% without condensation
MAX ALTITUDE	2000 m asl
DIMENSIONS	Height: 35 cm/13.8” Width: 20 cm/7.9” Depth: 16 cm/6.3”
WEIGHT	ZeroAir 5 7 kg/15 lbs ZeroAir 20 9 kg/20 lbs
PNEUMATIC CONNECTIONS	Compressed air inlet: G 1/8” female Purified air output: G 1/8” female

Choose your product

Filters Clear Filters

Reference CL-422.05.0130

Description Zero Air 5 litros/minuto

To use the Favorites List you must be registered Sign up

Reference CL-422.05.0230

Description Zero Air 20 purifica hasta 20 litros/min
