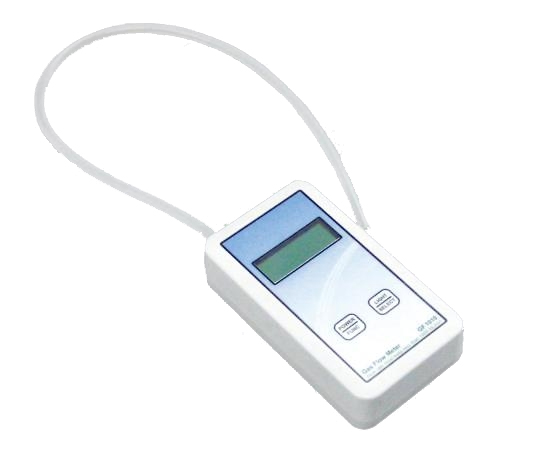

The new compact-portable GF1010 gas flow meter makes gas flow measurement easier and more accurate, helping to eliminate user errors. The GF1010 is an essential tool for troubleshooting and routine maintenance of your gas chromatograph. The LCD display with back light makes flow rate legible. As an option, a Silicone cases are available to protect the flowmeter from shock.
|0.5 - 1200 mL/min (Display Range : -0.1 - 1400 mL/min）|
|Accuracy||± 3 % or ± 0.3 mL/min. whichever is greater (Calibration gas: N2)|
|15 - 30 ºC
(Operating Temp. Range where the accuracy isn't guaranteed: 10 - 40 ºC)
|Tube||Tube: 3 mm l.D., 7 mm O.D. (Operating Temp.: up to 200 ºC)|
|Measurable Gases||N2, Air, He, Ar, H2 or etc.
Caution! Do not use the flowmeter to measure corrosive and humid gas.
|Standards||WEEE, RoHS, CE|
|Dimension||76 (W) x 135 (D) x 35 (H) mm (Excluding protrusion)|
|Weight||Approx. 240 g excluding battery|
